Overview

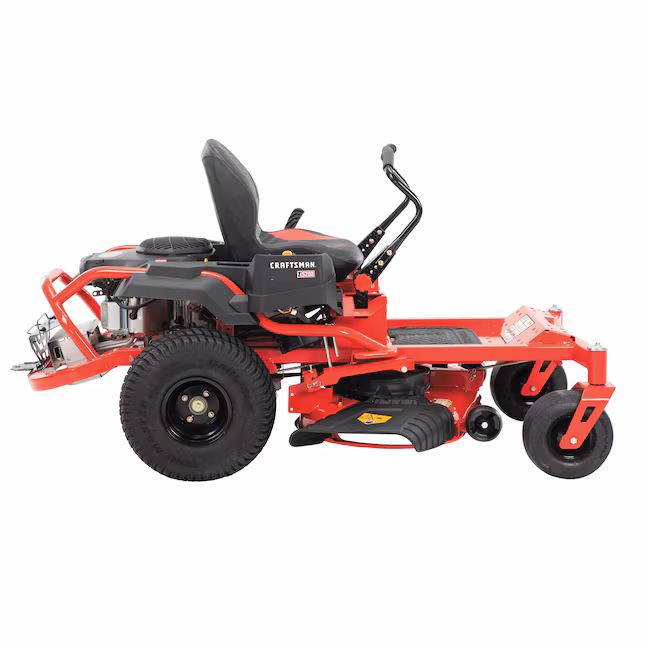

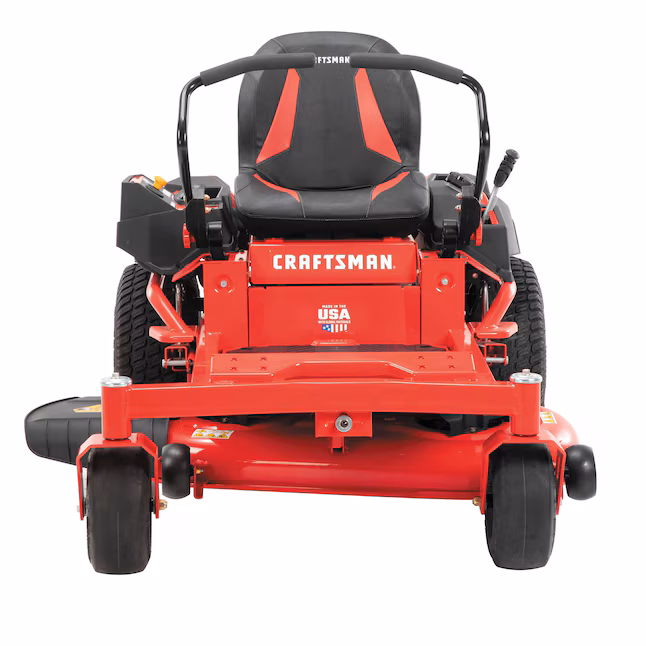

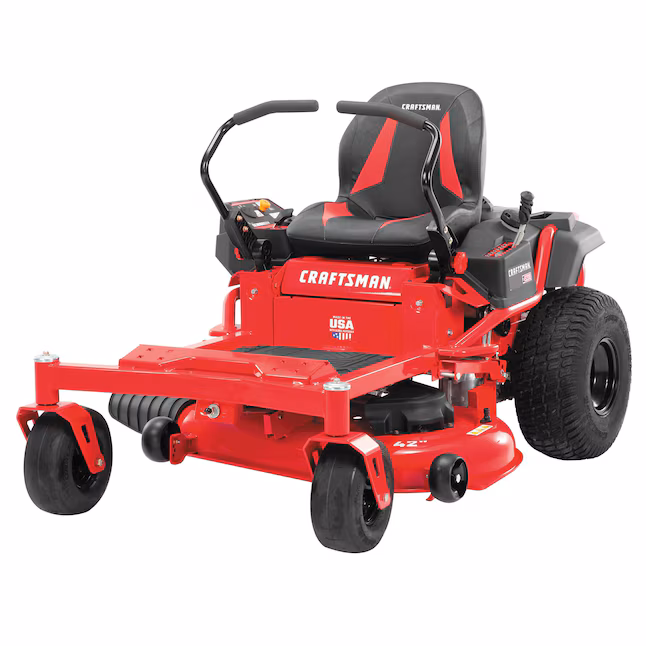

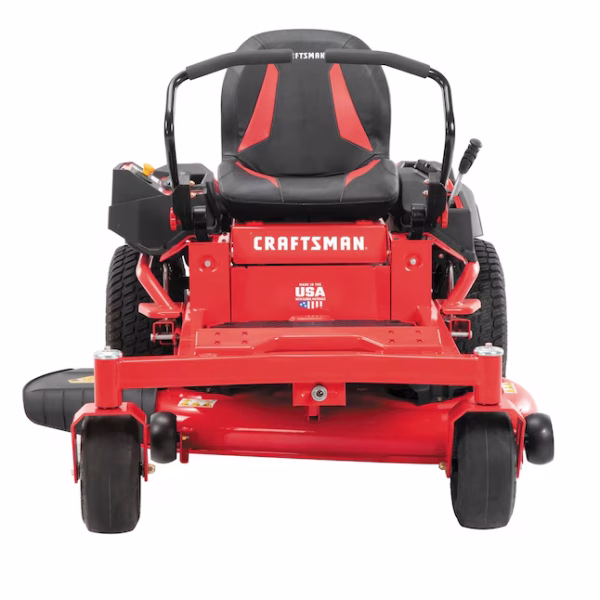

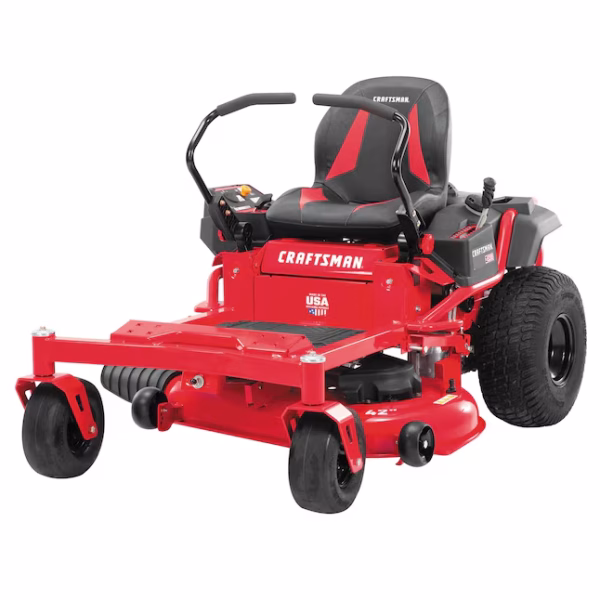

The CRAFTSMAN® Z5200 zero-turn riding mower provides an optimum mowing experience. Its strong 20 HP Kohler® 7,000 twin-cylinder engine provides the power and reliability you need to get the job done. Equipped with a 42-inch steel deck, robust steel frame design, and dual range hydrostatic transmission for durability and control. This mower will provide an exceptional ride as you power through the lawn in comfort and support thanks to a high-back seat. You can add an optional mulching kit to create the perfect finishing touches by returning nutrients to your soil for a healthier lawn. Give your yard a professional look with the CRAFTSMAN® Z5200 zero-turn riding mower.
General |
|||
|---|---|---|---|
Series Name |
Z5200 |
Type |
Zero-turn riding lawn mower |
Sub-Type |
Lawn tractor |
|
|
Dimensions |
|||
|---|---|---|---|
Assembled Weight (lbs.) |
600 |
Fuel Capacity (Gallons) |
3.5 |
Cut Width (Inches) |
42 |
Overall Length (Inches) |
84 |
Cutting Range/Yard Size (Acres) |
1-2 acres |
Overall Width with Deck (Inches) |
48 |
Engine Oil Capacity (oz.) |
64 |
Rear Wheel Size |
20-in |
Front Wheel Size |
11-in |
Model No |
CMXGNAM211701 |
Features |
|||
|---|---|---|---|
Ammeter |
No |
Lowe’s Exclusive |
Yes |
Bagger Capable |
Yes |
Maximum Forward Speed (MPH) |
7 |
Blade Engagement Type (PTO) |
Electric |
Maximum Reverse Speed (MPH) |
3.5 |
Cruise Control |
No |
Mulching Capable |
Yes (kit sold separately) |
Deck Gauge |
13 |
Number of Blades |
2 |
Deck Type |
Stamped |
Number of Deck Positions |
8 |
Discharge Location |
Side |
Number of Deck/Anti-Scalp Wheels |
2 |
Drive Type |
Rear wheel drive |
Oil Filter Type |
Spin-on |
Engine Brand |
KOHLER |
Operator-Controlled Mow-in-Reverse |
Yes |
Engine Displacement (Cu. Centimeters) |
725 |
Power Source |
Gas |
Engine Horsepower |
20 |
Recommended for Terrain Type |
Flat with obstacles |
Engine Oil Included |
Yes |
Seat Type |
High-back |
Engine Series |
Kohler 7000 |
Start Type |
Turn key start |
Engine Type |
V-twin |
Steering Type |
Dual lap bar |
Front Axle |
Fabricated steel |
Transmission Type |
Dual hydrostatic |
Grease Fittings |
Yes |
Maximum Cutting Height (Inches) |
4.5 |
Headlight(s) |
No |
Minimum Cutting Height (Inches) |
1 |
Leaf Bag Included |
No |
|
|
