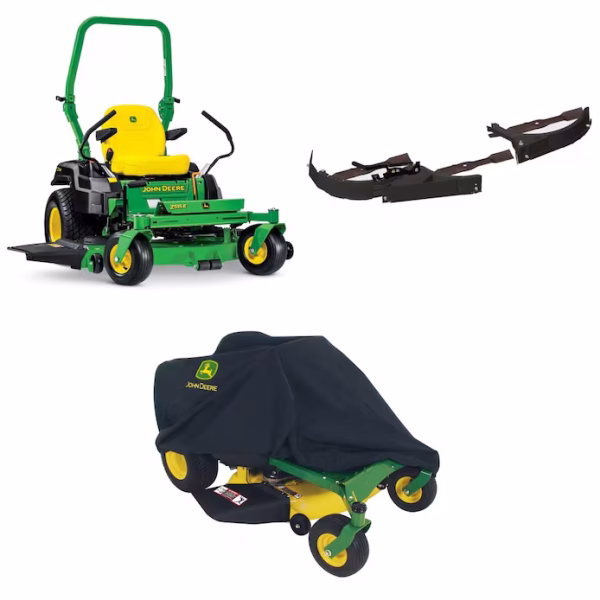

It’s not how fast you mow. It’s how well you mow fast™. Mow well fast with the John Deere 60-in triple blade Accel Deep™ Mower Deck, engineered to process tall grass at faster speeds. The 24 HP, V-Twin John Deere Extended Life Series® (ELS)engine has plenty of power and torque for the Z515E to handle tough mulching, mowing, and bagging conditions – most suitable for a flat with obstacles terrain, two plus acres. Comfortable 18-in back two spring suspension seat with armrests, cup holder, side and under seat storage compartments, foot lift, color coded controls for easy identification and low-fuel warning light visible in daylight. The Z515E is equipped with a foldable Roll-Gard rollover protective structure (ROPS), retractable seat belt and a 4-year/300-hour bumper to bumper warranty.
General |
|||
|---|---|---|---|
|
Series Name
|
Z515E ZTraK
|
Type
|
Zero-turn riding lawn mower
|
Dimensions |
|||
|---|---|---|---|
|
Assembled Weight (lbs.)
|
784
|
Fuel Capacity (Gallons)
|
4.5
|
|
Cut Width (Inches)
|
60
|
Overall Length (Inches)
|
76.9
|
|
Cutting Range/Yard Size (Acres)
|
3-5 acres
|
Overall Width with Deck (Inches)
|
73.4
|
|
Engine Oil Capacity (oz.)
|
64
|
Rear Wheel Size
|
22-in
|
|
Front Wheel Size
|
13-in
|
|
|
Features |
|||
|---|---|---|---|
|
Ammeter
|
Yes
|
Hour Meter Type
|
Meter only
|
|
Bagger Capable
|
No
|
Leaf Bag Included
|
No
|
|
Blade Engagement Type (PTO)
|
Electric
|
Lowe’s Exclusive
|
No
|
|
Commercial/Residential
|
Residential
|
Maximum Forward Speed (MPH)
|
8
|
|
Cruise Control
|
No
|
Maximum Reverse Speed (MPH)
|
4
|
|
Cup Holder
|
Yes
|
Mulching Capable
|
Yes (kit sold separately)
|
|
Deck Gauge
|
10
|
Number of Blades
|
3
|
|
Deck Type
|
Stamped
|
Number of Deck Positions
|
18
|
|
Discharge Location
|
Side
|
Number of Deck/Anti-Scalp Wheels
|
4
|
|
Drive Type
|
Rear wheel drive
|
Oil Filter Type
|
Standard
|
|
Engine Brand
|
John Deere Branded ELS
|
Operator-Controlled Mow-in-Reverse
|
Yes
|
|
Engine Displacement (Cu. Centimeters)
|
724
|
Power Source
|
Gas
|
|
Engine Horsepower
|
24
|
Recommended for Terrain Type
|
Flat with obstacles
|
|
Engine Oil Included
|
Yes
|
Seat Type
|
High-back with arm rests
|
|
Engine Series
|
John Deere Branded ELS
|
Start Type
|
Turn key start
|
|
Engine Type
|
V-twin
|
Steering Type
|
Dual lap bar
|
|
Front Axle
|
Cast iron
|
Transmission Type
|
Dual hydrostatic
|
|
Grease Fittings
|
Yes
|
Maximum Cutting Height (Inches)
|
4
|
|
Headlight(s)
|
No
|
Minimum Cutting Height (Inches)
|
1
|
