Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
| Lifting Capacity | 11000 lbs. (4990KG ) |
| Max. Lifting Height | 92.52″ / 2350mm |
| Lifting Time | 95s Up / 55s Down |

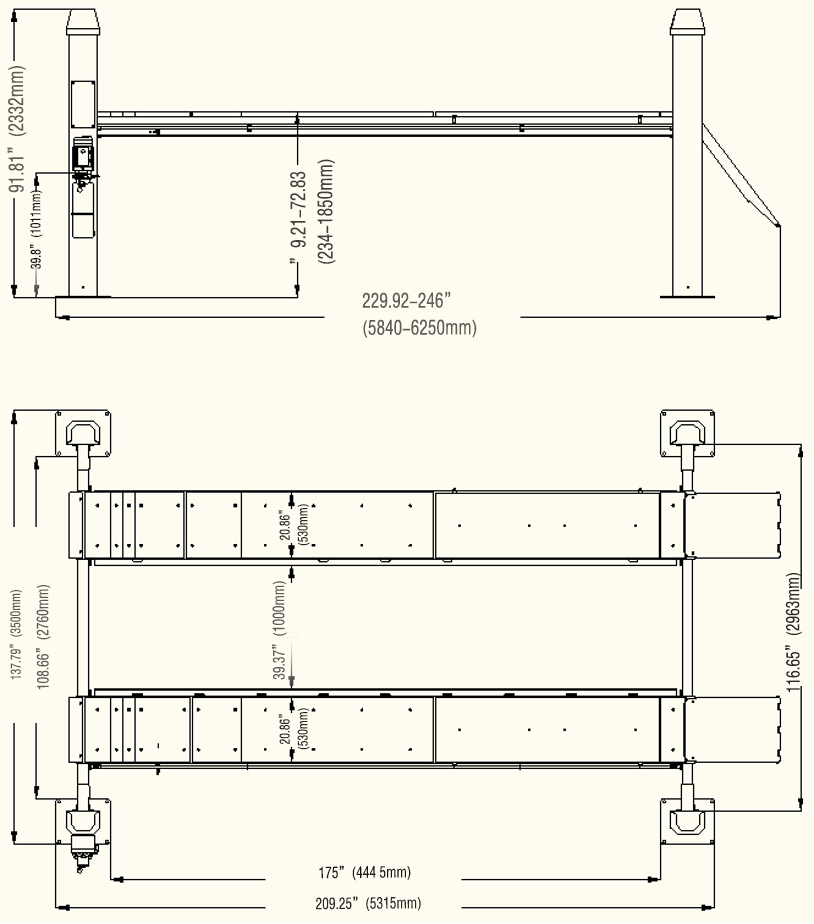

| Height of Posts | 85.63″ / 2175mm |

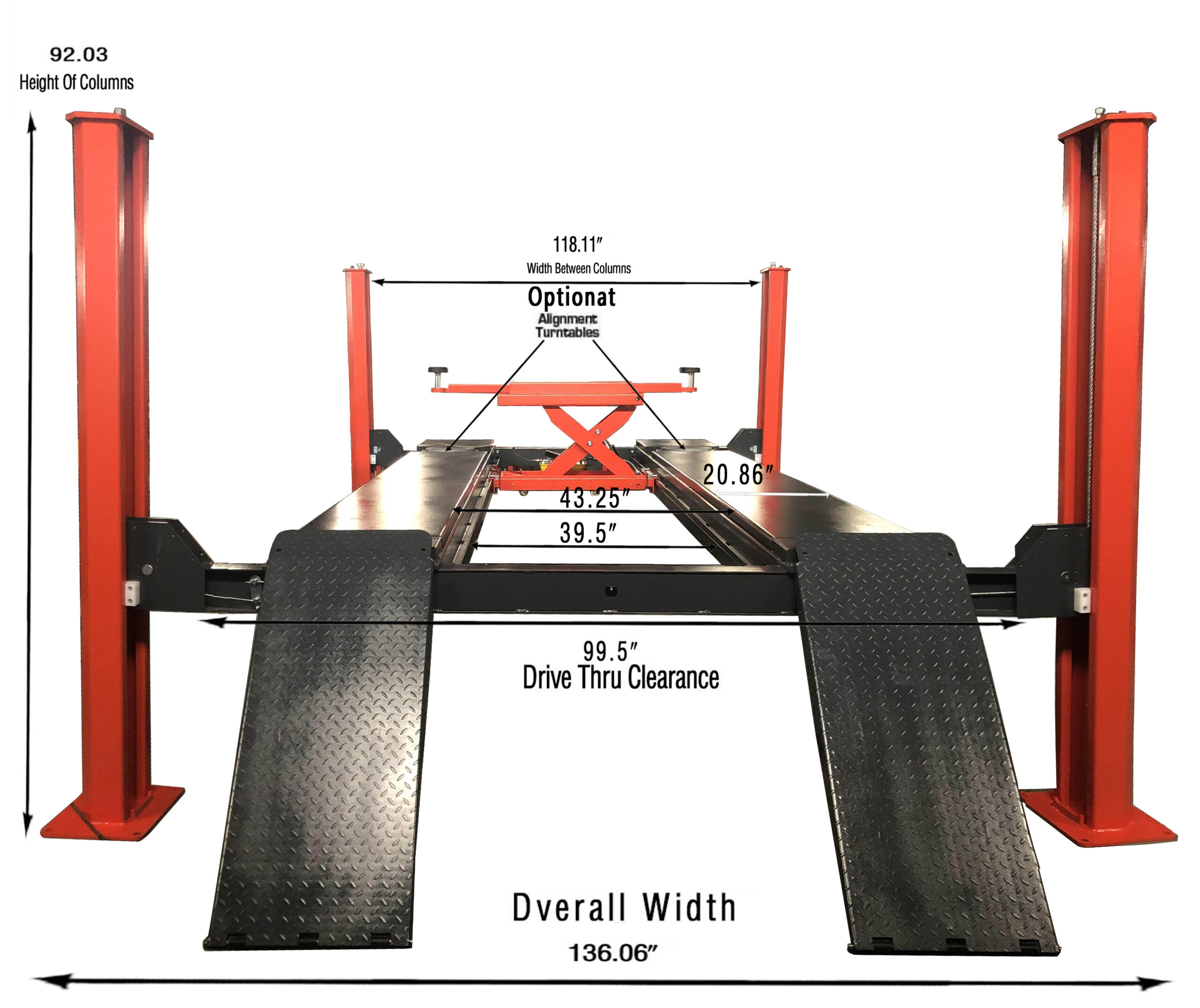

| Width Overall | 136.06″ / 3456mm |
| Length Overall | 245.31″ / 6231mm (with Ramps) |
| Inside Columns | 118.11″ / 3000mm |
| Min. Runway Height | 9.3″ / 236mm |
| Motor | 220VAC/60HZ/1PH |
| Net Weight | 4850lbs / 2200KG |
