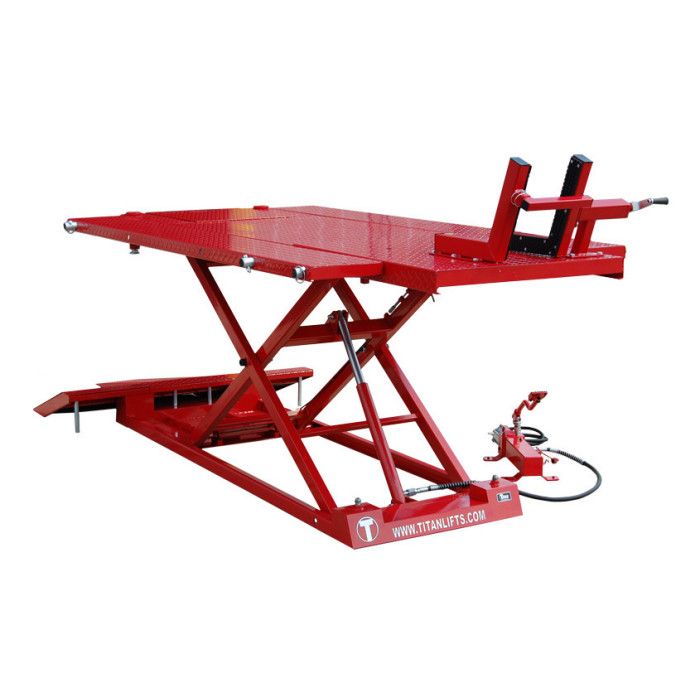

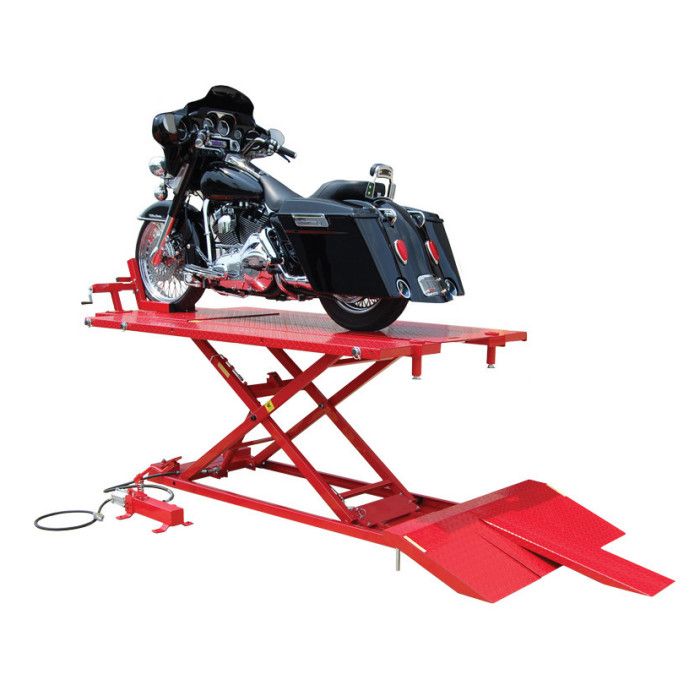

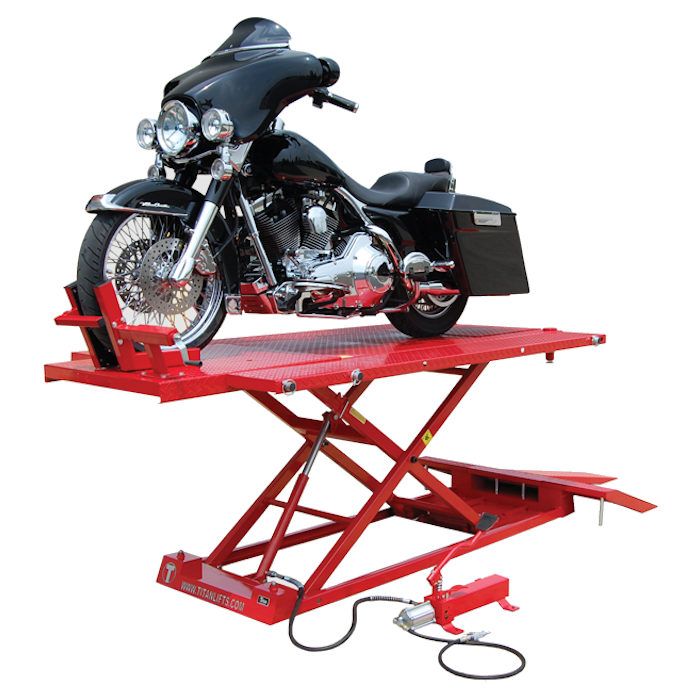

Titan Lifts HDML-1500XLT Motorcycle Lift
Don’t settle for less! – This is one of the finest motorcycle / ATV lift tables we carry. It offers everything you could possible want in a lift when it comes to features and capabilities, but also offers a few unique features. Some of those features include – Side extensions for ATV’s and lawn tractors, and front extension for extra long bikes. The ability to power with shop air, or with hydraulic pump. Also, at it’s top locking position of 40.5″ it raises a little bit higher than the typical lift. Plus, it features retractable casters, so this work table can even be portable and rolled around the garage floor while it’s loaded!
Are you looking for an affordable motorcycle lift platform that will hold up over time? We’ve seen so many of these products out there over the 20 years we’ve been in business that just won’t hold up to daily use. Well this one won’t disappoint you. Titan is known throughout the industry for their quality, and this lift table is the perfect example. Plus, it includes most the popular accessories that typically cost extra. Comes complete with front extension, side extensions, removable approach ramp, drop out panel for the rear wheel, and it’s totally portable. Plus, with the front extension attached, you’ll be able to get most longer bikes on this lift without a problem. Just hook up shop air, and you’re ready to roll!
So check out the specifications below and give us a call with any questions.
The Titan 1500XLT lift is a great addition to any enthusiasts garage. Perfect for servicing motorcycles and ATV’s, the HDML-1500XLT features built-in retractable casters, automatic safety locks and single hydraulic lifting cylinder. Built to last with heavy12-gauge steel and powder coat finish, this lift is durable and commercial grade.
Wheel Vise Sold Separately
Why you should choose the HDML-1500XLT:
- Perfect for servicing motorcycles and ATVs
- Built-in retractable casters
- Automatic safety locks
- Heavy 12-gauge steel construction
- Single hydraulic lifting cylinder
- Dual function power unit. Air or hydraulic foot-pump operation
- Powder coat finish
- Two rear wheel drop outs for back wheel maintenance
- Warranty: (1) Year Structure, (1) Year Hydraulic & Electrical Parts, No Labor
Comes standard with:
- Front Table Extension
- Side Extensions
- Standard Rear Wheel Drop Out
- Roller Plate Drop Out
- 3 Detachable Short Ramps
- Detachable Low-Profile Ramp
- Air/Hydraulic Pump Unit
- Rear Support Poles
- Retractable Casters
Optional Accessories:
- Front Wheel Vise
- Bulldog Moto Cradle
Features and Specs
Features
- Perfect for servicing motorcycles and ATVs
- Built-in retractable casters
- Automatic safety locks
- Heavy 12-gauge steel construction
- Single hydraulic lifting cylinder
- Dual function power unit. Air or hydraulic foot-pump operation
- Powder coat finish
- Two rear wheel drop outs for back wheel maintenance
Includes
- Front Table Extension
- Side Extensions
- Standard Rear Wheel Drop Out
- Roller Plate Drop Out
- 3 Detachable Standard Ramps: 24″ length
- Detachable Low-Profile Ramp: 36″ length
- Air/Hydraulic Pump Unit
- Rear Support Poles
- Retractable Casters
Locking Positions
- Lock Position 1: 23.5″
- Lock Position 2: 28.25″
- Lock Position 3: 32″
- Lock Position 4: 35.5″
- Lock Position 5: 38.25″
- Lock Position 6: 40.5″
Optional
- Front Wheel Vise
- Bulldog Moto Cradle
Specifications
- Capacity: 1500 lbs.
- Front Extension: 30″ x 35.25″
- Side Extensions (each): 11″ x 88.75″
- Table Length: 80″ – 102″
- Table Width: 30″ or 52″
- Lowered Height: 7.75″
- Rise Height: 42″
- Power Type: Air/Hydraulic
- Power Spec: 90 – 160 PSI
- UPC (Black): 837654443163
- UPC (Red): 837654443156
- Shipping Weight: 930 lbs.
- Shipping Dimensions: 91″ L x 37″ W x 24″ H
- Warranty: (1) Year Structure, (1) Year Hydraulic & Electrical Parts, No Labor
Titan Limited Warranty
Titan Standard Duty and Heavy Duty motorcycle lifts are backed by a standard 1 year replacement parts warranty from the date of purchase, to the original purchaser only. The 1 year replacement parts warranty covers power units, hydraulic cylinders, pneumatic cylinders, and all other assembly components such as, but not limited to: cables, caster wheels, valves, switches, wheel vises etc. This does not cover normal wear items such as but not limited to rubber wheel vise pads.
